Home Displays 0.36″ 3-Wire Digital Voltmeter DC 0 – 30V, 0 – 100V without case
0.36" 3-Wire Digital Voltmeter DC 0 - 30V, 0 - 100V $0.35 – $0.41
Back to products
0.28" 3-Wire Digital Voltmeter DC 0 - 100V $0.39 – $0.42

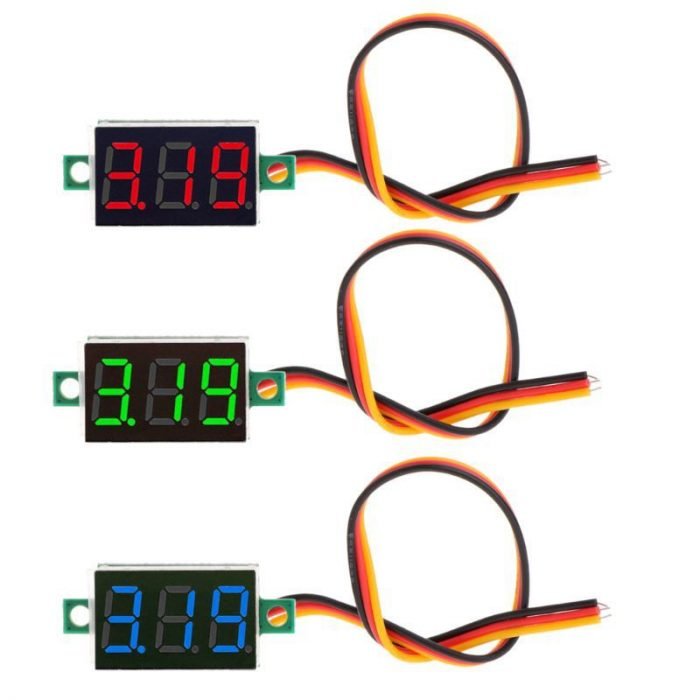

0.36″ 3-Wire Digital Voltmeter DC 0 – 30V, 0 – 100V without case

$0.36 – $0.48

Clear
Compare
Add to wishlist
SKU: N/A Categories: Displays, Meters, Tools
Share:
  • Description
  • Additional information
  • Reviews (0)
  • Shipping & Delivery
Description

Measurement range: 0-30V DC
Supply voltage range: 4-30V
Note: Input voltage higher than 30V may be permanently damaged!

Accuracy: ±1%;
Input Impedance: > 100K ohms
Operating Current: Red < 23mA, Green < 18mA, Blue < 13mA
Refresh rate: about 300ms
Lead Length: 15cm

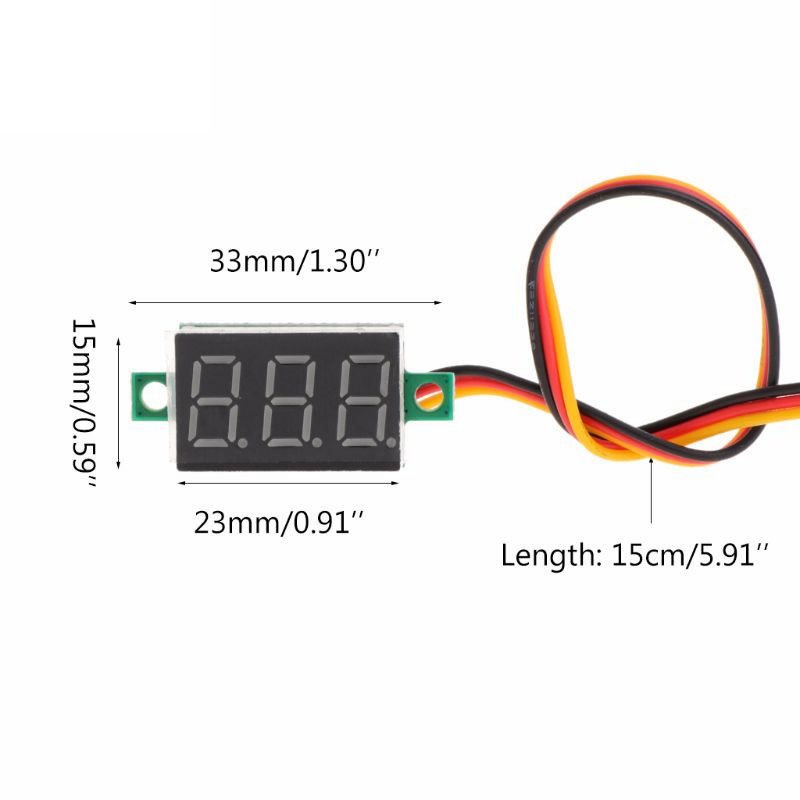

Dimensions: 23 x 15 x 10 mm (not including mounting holes)
Mounting holes: 28mm spacing, 2.8mm diameter

Measurement range: 0-100V DC
Supply voltage range: 4-30V
Note: Input voltage higher than 30V may be permanently damaged!

Accuracy: ±3%;
Input Impedance: > 100K ohms
Refresh rate: about 200ms
Lead Length: 15cm
Dimensions: 23 x 15 x 10 mm (not including mounting holes)
Mounting holes: 28mm spacing, 2.8mm diameter

Note, when use this meter as 2-wire connection meter, the tested voltage should be below 30V, otherwise the meter will be damaged.

Additional information
Weight N/A
Color

Blue, Green, Red

Range

DC 0-100V, DC 0-30V
