This battery fuel gauge indicator is suitable for 12V, 24V, 36V, 48V, 60V, 72V, 84V batteries, lithium batteries, polymer batteries, and nickel-metal hydride batteries.
It can also be used for other power/voltage measurement purposes.

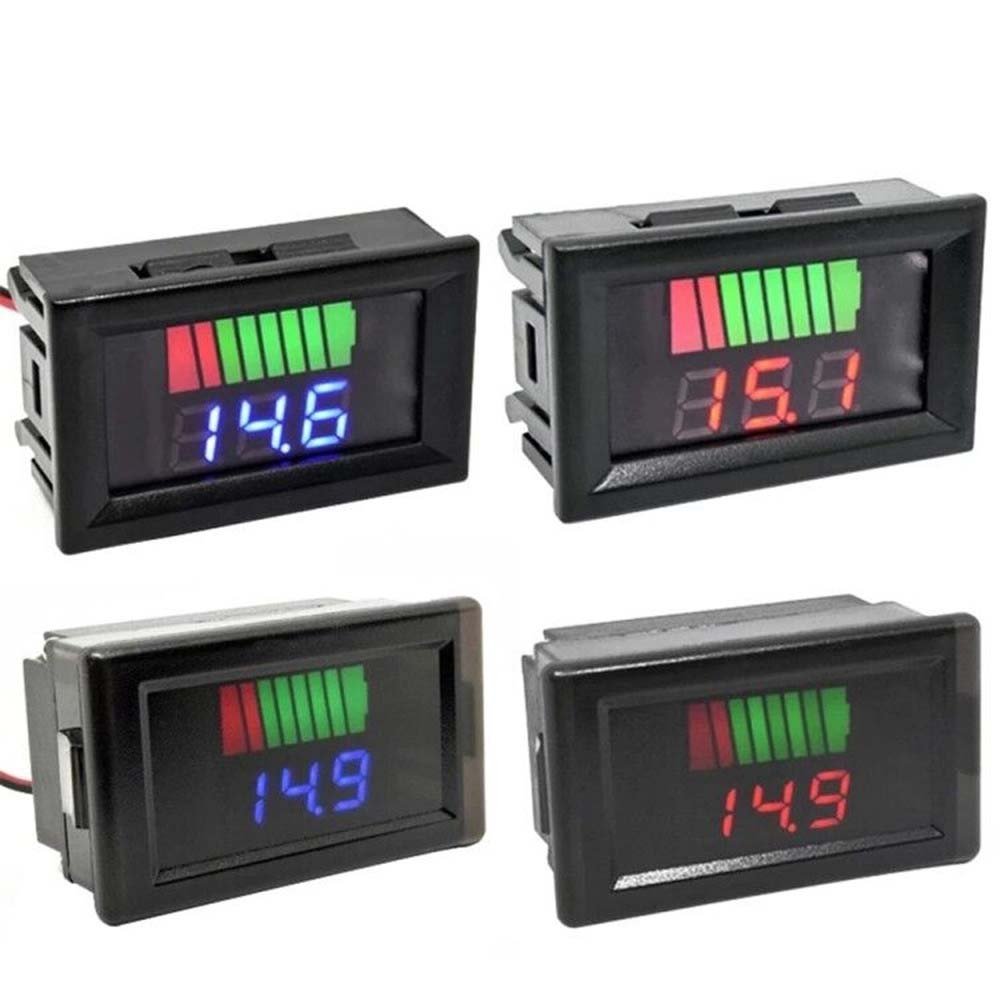

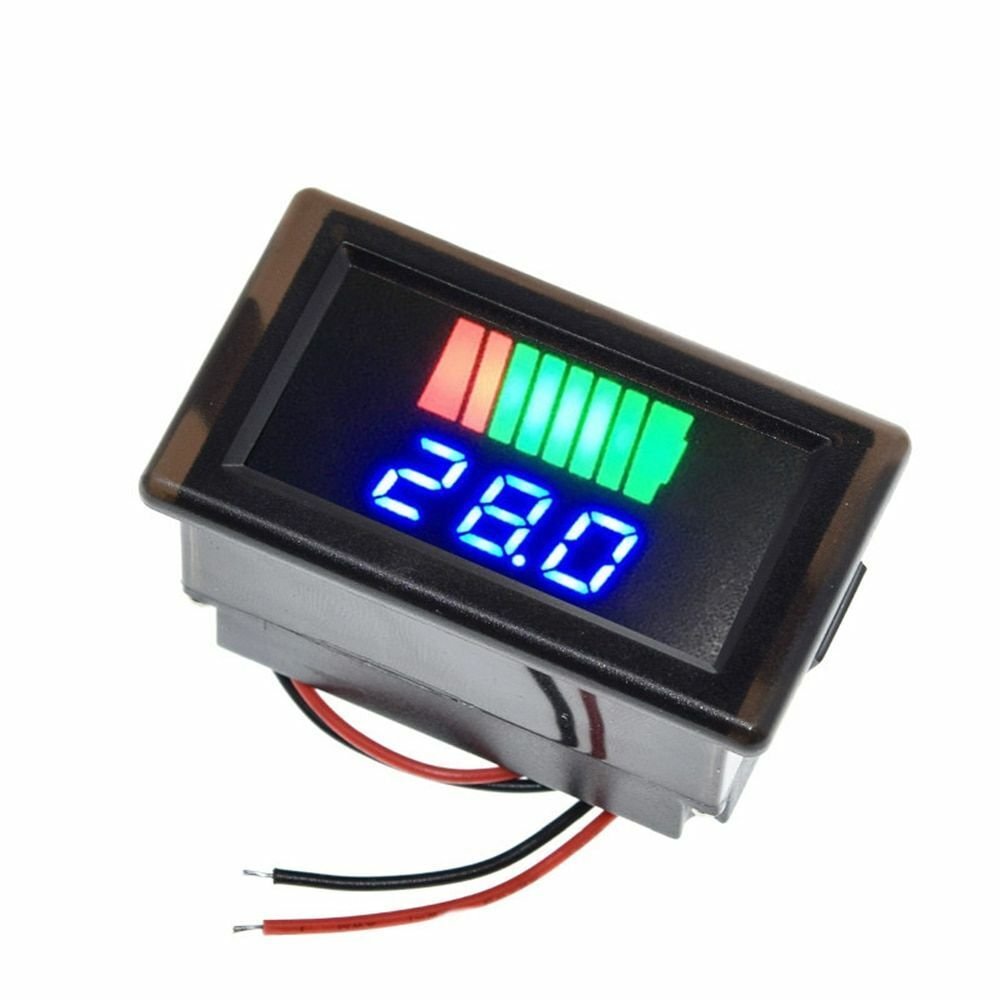

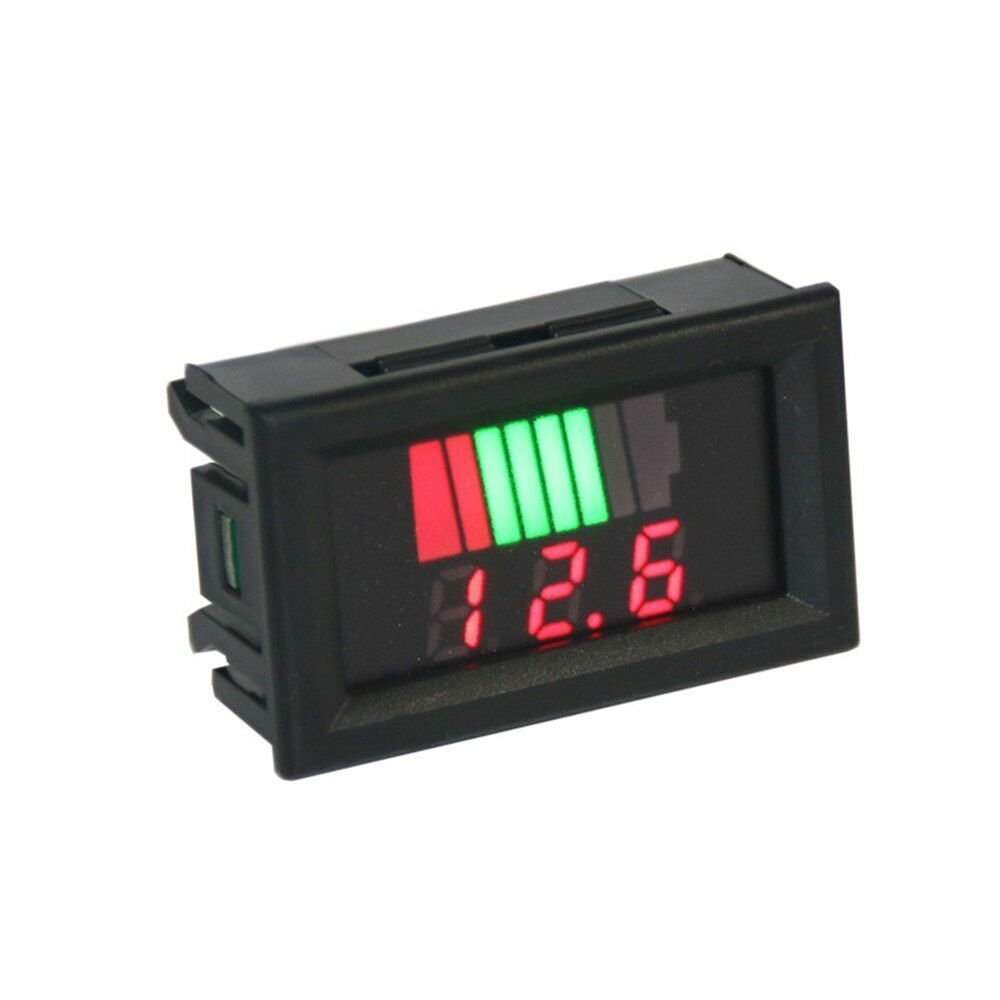

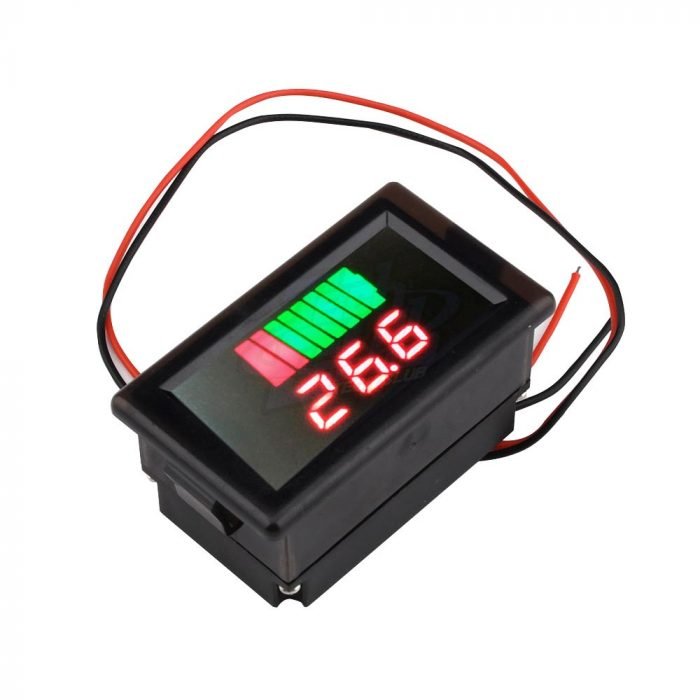

Dual display: battery level + voltage
The 8-segment bar shows the battery power (2 red and 6 green).
The 3-digit 7-segment LED display shows voltage.
The meter automatically recognizes the voltage and electricity, and has a reverse connection protection.
Instructions for use:

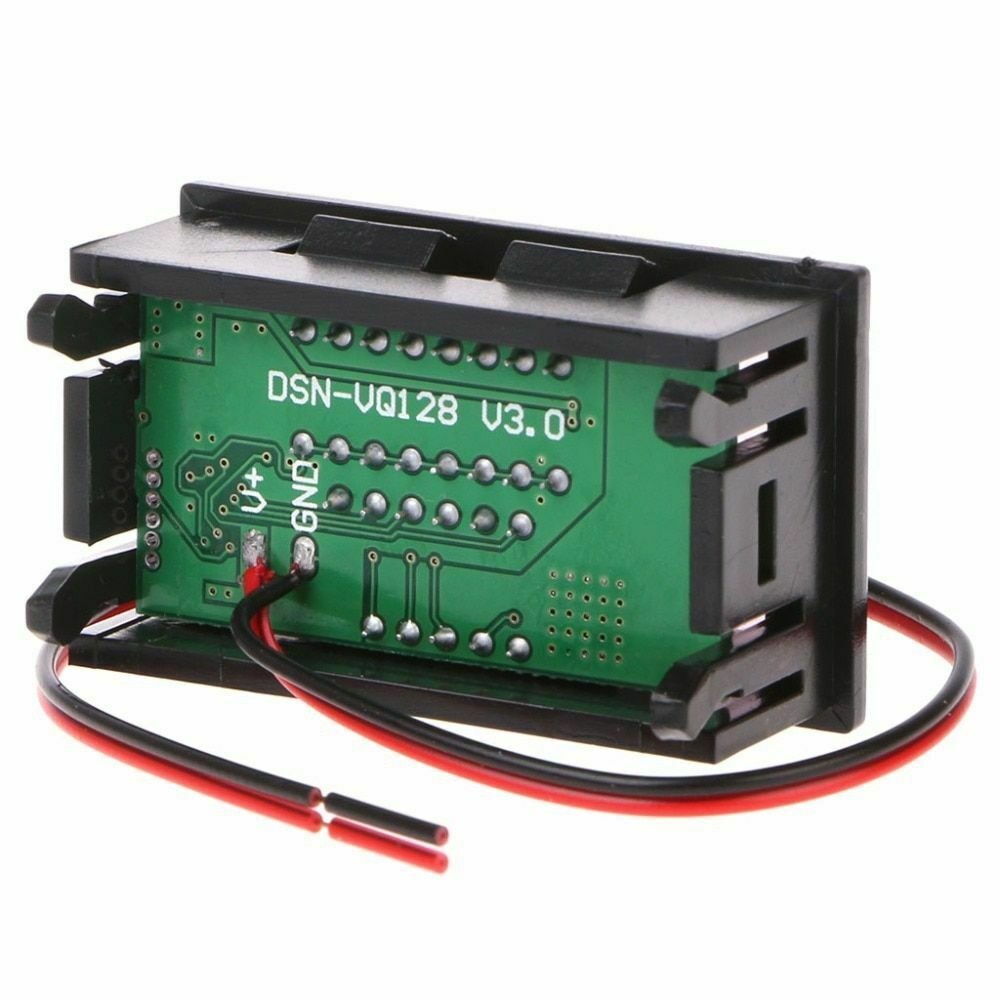

The two-wire system of the meter can directly test the battery.
Parameter:
Accuracy: ±1%;
8 levels of power: 10% 25% 40% 50% 60% 75% 90% 100%full
Working current: 5-15 mA
Refresh rate: 300mS
Display mode: three-digit 0.56″ LED digital tube
Voltage color: red, blue
Lead length: 20cm
Dimensions: 48 x 29 x 22 mm
With mounting hole: 46 x 27 mm
Working temperature: -20℃~65℃
Applications:
Lithium batteries, polymer batteries, nickel-metal hydride batteries, lead-acid batteries. E-bikes, motorcycles, bicycles, trucks, solar power system batteries.
