Home Sensors, Modules HY-SRF05 Ultrasonic Distance Sensor Module HC-SR05
HC-SR04 Ultrasonic Distance Sensor Module ¥3.36
Back to products
LM2596S 3-40V 3A DC-DC Adjustable Step-down Power Supply Module Buck Converter ¥2.52

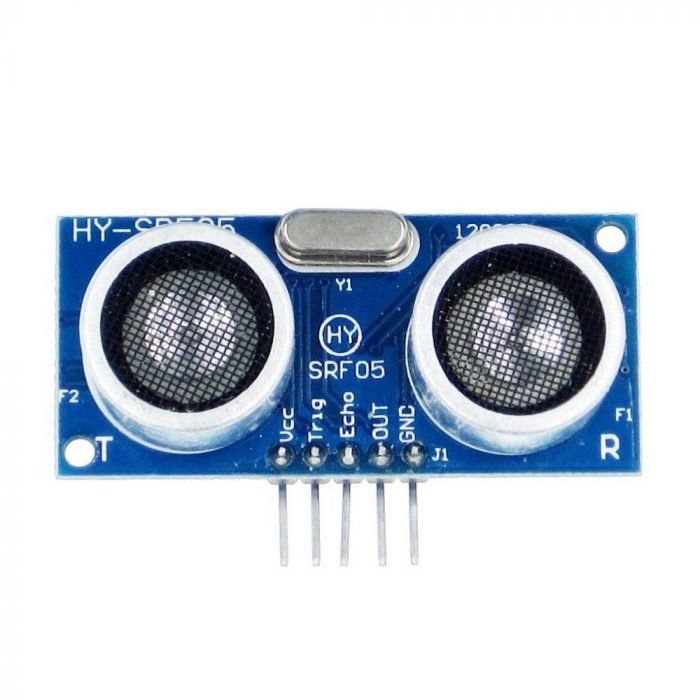

HY-SRF05 Ultrasonic Distance Sensor Module HC-SR05

¥5.16

Compare
Add to wishlist
SKU: ARD2002 Category: Sensors, Modules
Share:
  • Description
  • Additional information
  • Reviews (0)
  • Shipping & Delivery
Description

Specifications:
1: Working voltage: DC5V
2: Working current: <2 mA
3: High level output: 5V
4: Low level output: 0V
5: Detection angle: <15°
6: Detection range: 2 cm – 450 cm
7: High precision: up to 0.3 cm

This product use: a mouth sends a high level of more than ten us, you can receive the mouth for high level output. To be able to open the timer timing, an output when the mouth into a low electricity at ordinary times you can read the value of the timer is here for the distance of time, can calculate the distance. So constantly cycle test, you can reach your mobile measuring the value of the ~ ~

Working principle of the module:
(1) the IO trigger range, high level signal for at least 10 us;
(2) module automatically sent eight 40 KHZ square wave, automatically detect whether there is signal to return;
(3) have returned signal, through the IO output high level, the duration of the high level is the time of ultrasonic wave from launch to return. The test distance = (high level of time * sound velocity (340 m/S)) / 2

Additional information
Weight 0.02 kg
