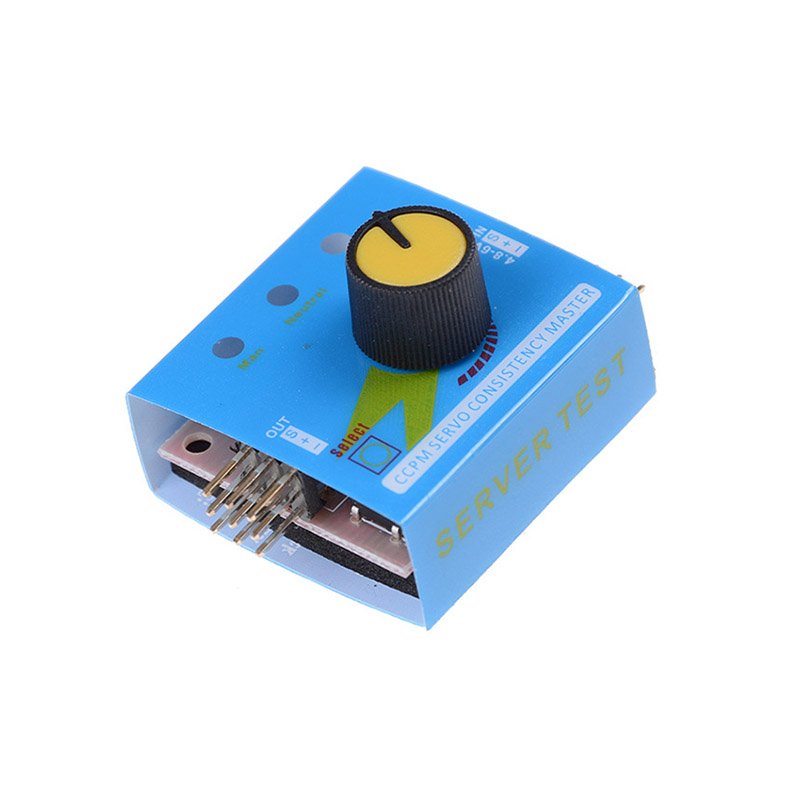

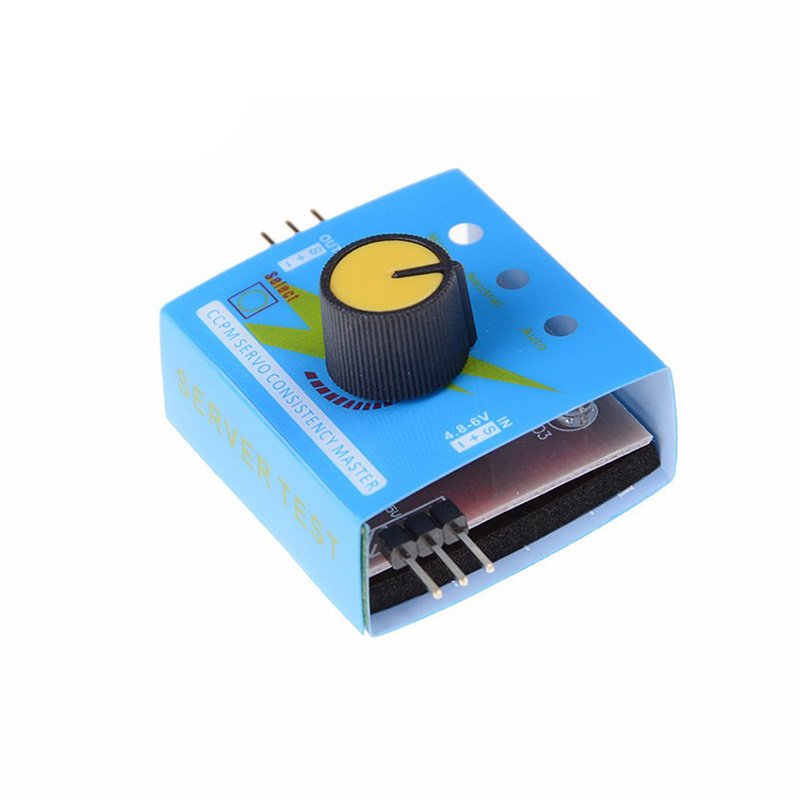

Servo Motor Tester Tool CCPM Consistency Master

Servo Tester Gear Testing CCPM Consistency Master Checker 3CH 4.8-6V with Indicator Light Digital Servo Tester / ESC Consistency Tester Steering Gear Measurement for FPV RC Helicopter Airplane Car Servo Tester Tool 3CH Digital Multi Servo Tester ECS RC Consistency CCMP Master Speed Controler Checker Module for Arduino

Specifications:
input voltage: DC4.8-6V
size: 48 x 42 x 17mm
weight: 31.5 g

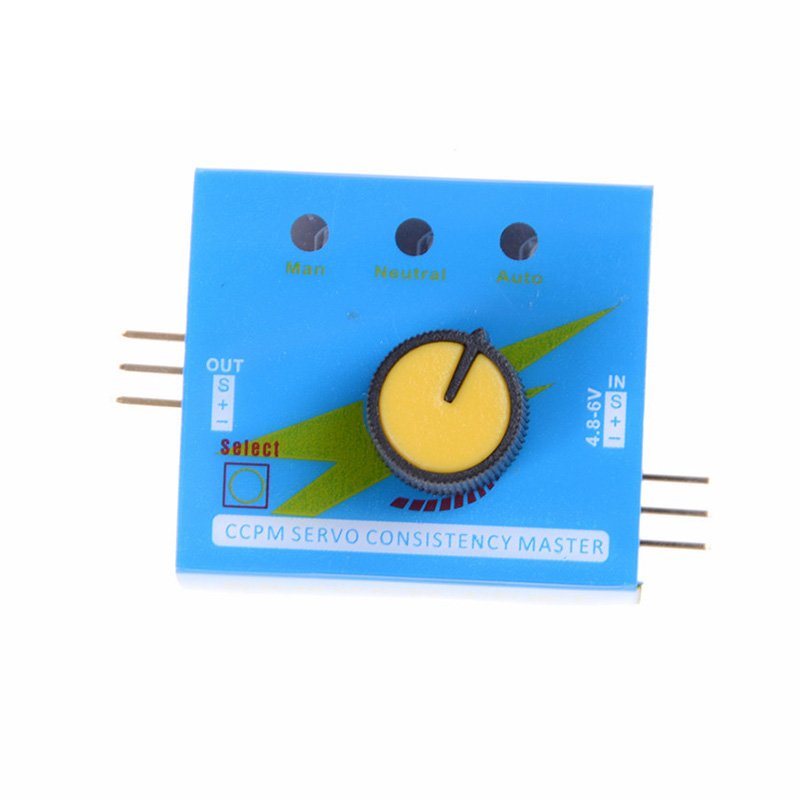

1.In three modes to check servos or ESC:
Manual mode—- Turn the knob with different speed. Check the reaction time.
Neutral mode—-Make the servo go back to the neutral point.
Automatic “window wiper” mode-make the servo swing like window wipers in the biggest angle.
2.It can conncet 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
3.You can also connect 1-3 ESC to test and compare their reaction time respectively.
4.It can connect 3 servos of the CCPM helicopters, adjust the helicopters and select servos.
5.It can also connect the servo of airplanes. Install the steering-box and adjust planes by using such as the neutral mode and so on.
